How does a 75mm rock wool board provide 102 minutes of fire resistance?

In the latest standard fire resistance limit test, using high-density rock wool board with a thickness of only 75mm to fully encase the main load-bearing steel columns successfully achieved an ultimate fire resistance performance of 102.1 minutes (over 1.5 hours). This figure is more than four times the fire resistance limit of unprotected exposed steel (typically only 15-20 minutes). More importantly, throughout the entire ultra-high temperature calcination test, the rock wool panel system maintained absolute structural integrity, with zero surface and internal cracks and no detachment, successfully building an impregnable life-saving barrier for high-density industrial and public buildings.

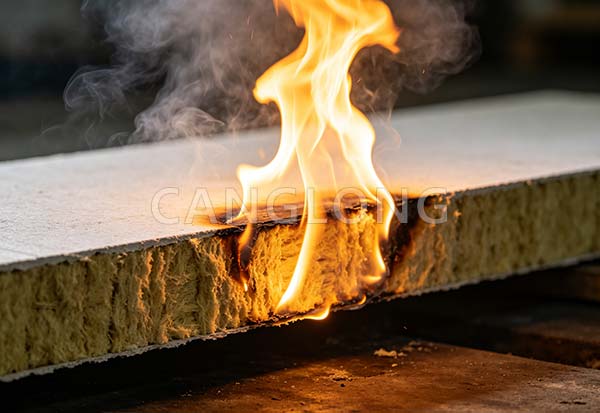

Rock Wool Board Fire Test

I. Why does steel itself desperately need the protection of rock wool?

Many people commonly believe that steel is a non-combustible material and should be the most fire-resistant. However, in structural engineering, this is a fatal misconception.

The Achilles heel of steel: Carbon structural steel (such as H-beams and columns) is non-combustible, but it is extremely sensitive to high temperatures.

The deadly 500℃: When the temperature at a fire scene reaches 500℃, the yield strength of steel drops by about 50% instantly.

Collapse crisis: In a standard fire, the temperature can soar to 700℃-800℃ within just 15-20 minutes. At this point, unprotected exposed steel columns will soften, twist, and bend like cooked noodles, directly causing the entire building to collapse in a very short time.

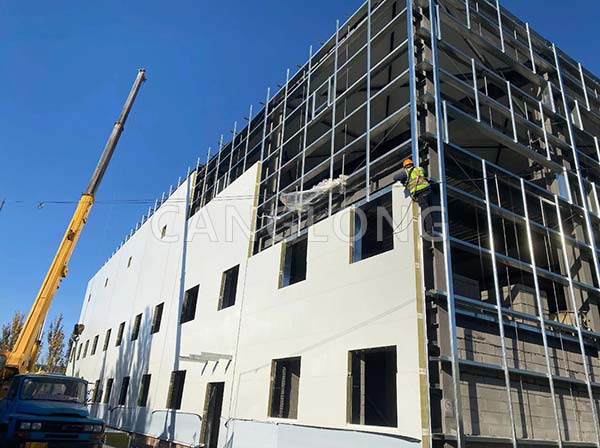

Rock Wool Board Installation for Steel Building

II. How does 75mm rock wool board withstand 102 minutes?

Rock wool sandwich panels, only 75mm thick (about 3 inches), extend the fire resistance limit of steel columns by more than four times through the following three core physical mechanisms.

1. Basalt Genes with a Melting Point Exceeding 1000°C

Rock wool is an inorganic mineral fiber made from natural basalt and dolomite through high-temperature melting and high-speed centrifugal drawing.

Physical Immunity: Its melting point exceeds 1000°C. In a standard fire test lasting 102 minutes, facing the intense flames, the 75mm rock wool core did not melt, carbonize, or drip, remaining firmly wrapped around the steel column, acting as the most robust heat shield.

2. Dense Three-Dimensional Interwoven Fibers

The 75mm rock wool board ability to prevent the internal steel column from reaching its critical softening temperature within 102 minutes is attributed to its superior internal microstructure.

• Air Insulation Chambers: Inside the high-density (typically ≥120kg/m³) rock wool, countless inorganic fibers intertwine in a three-dimensional, multi-directional manner, trapping numerous stationary micro-air chambers.
• Extremely Low Thermal Conductivity: This structure makes it extremely difficult for heat to penetrate. During a fire, although the outer steel plate was red-hot, the 75mm layer of rock wool effectively blocked most of the heat, slowing down the heating rate of the internal H-shaped steel column.

3. Zero-Crack Structural Integrity

• Many fire-retardant coatings or inferior insulation boards are prone to cracking and peeling under high-temperature firing due to thermal expansion and contraction, allowing flames to directly scorch the steel.
• Stable Deformation Resistance: Test data shows that high-quality rock wool sandwich panels, after being subjected to 102.1 minutes of high-temperature firing, showed no physical cracks or delamination in the overall system. The continuous and complete wrapping layer completely blocked air convection, preventing the formation of localized hot spots.

III. Application Implications and Golden Procurement Strategies for Buyers in 2026

This authoritative test data provides highly valuable insights into the return on investment (ROI) for the construction of industrial plants (such as workshops and large logistics warehouses) as well as high-density pedestrian areas such as schools and hospitals.

Industry Preferred Choice: Polyurethane (PU) Edge-Sealed Rock Wool Sandwich Panels

To achieve a 102-minute fire resistance rating while ensuring decades of waterproofing, insulation, and wind resistance for buildings, Canglong Group has fully implemented intelligent composite solutions.

• Core Fireproof Strip: Utilizes 75mm (or thicker) high-density Class A absolutely non-combustible rock wool, perfectly certified by both international ASTM E136 and EN 13501-1 fire safety standards, firmly maintaining a 102-minute fire resistance rating.
• Side Tongue and Groove: Utilizing a fully automated continuous production line, high-density polyurethane (PU) is injected into both sides of the tongue and groove joints of the panels for rigid edge sealing.
• Comprehensive Benefits: The high closed-cell rate of polyurethane completely solves the problems of traditional rock wool, such as easy water absorption and shrinkage due to moisture, eliminating the “cold bridge effect.” While ensuring buildings have more than 4 times the fire resistance, it also helps factories reduce daily central air conditioning energy consumption by more than 35%.

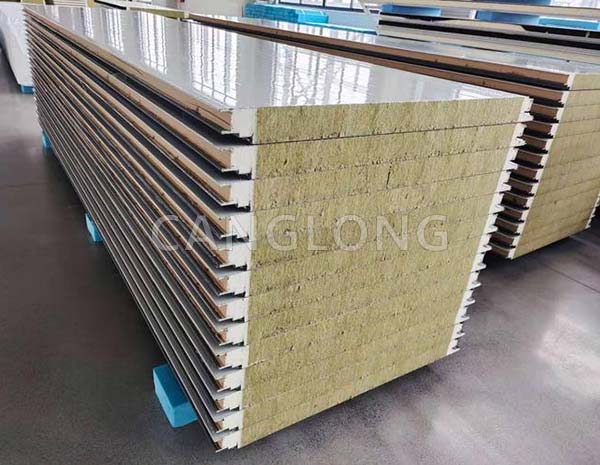

Polyurethane Edge-Sealed Rock Wool Sandwich Panels

IV. Canglong Group’s Quality and Compliance Assurance

In large-scale overseas infrastructure projects exceeding 10,000 square meters (such as a modern multi-span brewery in Azerbaijan and a high-standard pineapple processing workshop in the Philippines), Canglong Group consistently uses this high-performance enclosure system as a core standard component.

1. Digital Continuous Line Manufacturing: Canglong rejects low-end handmade panels, employing a heavy-duty, fully automated continuous hot-pressing production line to ensure the rock wool fiber direction is perfectly perpendicular to the double-sided color-coated steel plate, resulting in extremely high overall compressive and shear strength and exceptional stability in the face of disasters.

2. One-Stop Shipping and Assembly Management: Canglong provides comprehensive services including detailed steel structure design, closed-loop supply of fireproof building materials, international booking and transportation, and customs clearance guidance. All components are 100% factory-perforated with high precision and assembled on-site using a fully bolted “building block” method, eliminating the need for on-site secondary welding. This ensures fire compliance within 102 minutes and effectively halves your project’s construction schedule.

Rock Wool Board Shipment

Conclusion

Fire safety is paramount. Using a 75mm rock wool board (or polyurethane-sealed rock wool board) system that has undergone rigorous testing and can provide robust protection for more than 102 minutes is the ultimate long-term preservation of fixed assets and provides global investors with the most secure and certain business foundation.
