Polyurethane Edge Sealing Rock Wool Composite Board
- Effective Width: 1000mm/1m
- Profile Types: Micro-wave/Square-wave/Embossed/V8/Plain
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Insulation Material: Polyurethane (PU) + Rock wool
- Core Thickness: 50/75/100/150/200mm
- Coating: PE/SMF/HDP/PVDF
- Plating: Hot-dip galvanizing/Aluminium/Stainless steel
- Sound Insulation: ≥30db
- Flammability Rating: A
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
Polyurethane edge sealing rock wool composite board is high-performance composite building materials designed for fire safety, thermal insulation, and long-term durability. These panels use non-combustible rock wool as the core material, with high-strength pre-coated steel plates on both sides, and polyurethane sealing at the edges. This composite structure combines the excellent fire resistance of rock wool with the moisture resistance and structural integrity of polyurethane, simultaneously meeting the requirements of building envelope systems in terms of fire resistance, thermal insulation, sound insulation, and waterproofing.
Polyurethane edge sealing rock wool composite board is widely used in industrial plants, logistics centers, cold storage facilities, clean rooms, and commercial buildings, and specifications can be customized according to different regional building standards and climate conditions.

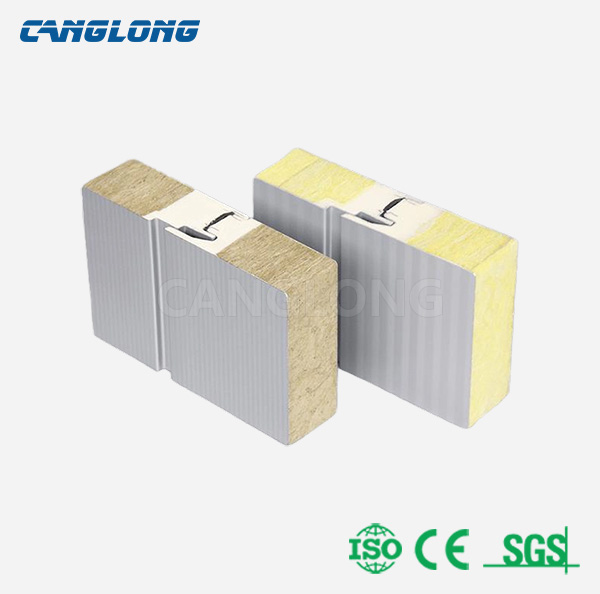

Product Structure
| Component | Material | Specification |
|---|---|---|
| Outer steel facing | Pre-painted steel (PE/PVDF coated), galvalume/galvanized | 0.5–0.8 mm |
| Inner steel facing | Pre-painted steel | 0.4–0.6 mm |
| Core material | Water-repellent rock wool (basalt-based) | Density 100–140 kg/m³ |
| Edge sealing | Rigid polyurethane (PU/PIR) | Full perimeter sealing |
The rock wool core material is made from natural basalt and other minerals melted at temperatures exceeding 1,450°C, forming a fibrous structure with high water repellency (≥98%) and low slag content. The polyurethane sealing completely covers the edges of the rock wool, eliminating capillary water absorption and ensuring a completely sealed insulation system.
Product Specifications
| Parameter | Range |
|---|---|
| Panel thickness | 50 / 75 / 100 / 120 / 150 / 180 / 200 / 250 mm |
| Effective width | 600–1,120 mm (standard 1,000 mm) |
| Panel length | Up to 15,000 mm |
| Core density | 100–140 kg/m³ (commonly 120 kg/m³) |
| Surface finishes | Flat, embossed, water-ripple, mini-ripple |
| Connection type | Hidden screw / tongue-and-groove interlocking |
Thickness, width, length, color, and surface texture can all be customized according to project requirements and local building codes.
Performance Advantages
Fire Safety – Class A Non-combustible
The rock wool core material meets EN 13501-1 Class A1 non-combustible standards and GB 8624-2012 Class A2 non-combustible requirements. Depending on the board thickness, the fire resistance rating can reach EI 30 to EI 240. For example, 50 mm can reach EI 30, 100 mm can reach EI 60–120, and 150 mm and above can reach EI 180–240. The rock wool core material maintains its structural integrity at temperatures exceeding 1,000°C, does not produce toxic fumes or molten droplets, and forms an effective fire barrier to limit the spread of flames.
Thermal Insulation – Superior to Ordinary Rock Wool Boards
Polyurethane edge sealing improves the overall thermal performance of the board. The thermal conductivity of the rock wool core is ≤0.043 W/(m·K), and the thermal conductivity of the polyurethane edge sealing layer is 0.019–0.025 W/(m·K), which reduces edge thermal bridging and makes the overall heat transfer of the composite board lower than that of unsealed rock wool boards. The specific overall thermal conductivity depends on the board thickness, core material density, and test reports. This performance helps reduce heating and cooling energy consumption throughout the building’s life cycle.
Moisture Resistance and Durability
Unsealed rock wool boards are prone to moisture absorption at the edges, leading to decreased insulation performance and board deformation. Polyurethane edge sealing completely covers the rock wool, with a water repellency ≥98% and a water absorption ≤0.5 g/100 cm², preventing capillary action, maintaining dimensional stability, and extending the board’s service life.
Structural Strength
The compressive strength of the board can exceed 150 kPa. The rock wool fibers are arranged at 90° perpendicular to the steel plate direction, which enhances compressive and shear strength, making it suitable for wall and roof systems with high load-bearing and wind resistance requirements.
Sound Insulation Performance
High-density rock wool core material offers excellent sound insulation. According to ASTM E90 testing, the polyurethane edge sealing rock wool composite board can reduce noise transmission by up to 30 dB, with a sound insulation Rw ≥ 30 dB, making them suitable for manufacturing areas, power plants, and large computer rooms where noise control is required.
Aesthetics and Installation Efficiency
The concealed screw connection system ensures a smooth exterior surface with no visible fasteners, reducing the risk of corrosion at fixing points and extending service life. The tongue-and-groove joint design facilitates rapid installation and reduces on-site labor. The joint structure resists rain, snow, and freeze-thaw cycles, reducing the risk of wall leakage and indoor mold growth.
Comparison with Ordinary Rock Wool Boards
| Parameter | Standard Rock Wool Panel | Polyurethane Edge Sealing Rock Wool Composite Board |
|---|---|---|
| Thermal conductivity (composite) | ≤0.043 W/(m·K) | ≤0.025 W/(m·K) |
| Compressive strength | ≥100 kPa | ≥150 kPa |
| Edge treatment | Exposed rock wool | Fully PU-sealed |
| Moisture resistance | Limited | Excellent (hydrophobic ≥98%) |
| Fixing method | Exposed screws | Hidden/concealed fixing |
| Panel flatness | Moderate | Superior |
| Service life | Shorter (moisture degradation) | Extended (sealed edges) |
Data is compiled based on comparative tests and manufacturer specifications; please refer to the product test report for specific details.
Application Scenarios
Industrial and Manufacturing Facilities
Steel structure workshops, heavy industrial workshops (smelting, chemical, automotive), and precision electronics manufacturing facilities. Its fire resistance and thermal insulation performance meet the safety requirements of high-risk industrial environments.
Cold Storage & Cold Chain
Cold storage facilities, refrigerated warehouses, and food processing facilities. The combination of low thermal conductivity polyurethane and A1-grade fire resistance of rock wool makes it suitable for applications such as pharmaceutical cold chain systems with standard refrigeration up to -40°C.
Logistics & Warehousing
Large distribution centers, supermarkets, and logistics warehouses. Quick installation and high insulation efficiency make it suitable for large-span wall and roof systems.
Cleanrooms & Controlled Environments
Cleanroom partitions and ceilings suitable for biopharmaceutical, food processing, and medical device manufacturing. Sealed edges, smooth surfaces, and low particulate release meet cleanroom environment requirements.
Commercial & Public Buildings
Large-span public buildings such as airport terminals, convention centers, and sports facilities, combining fire resistance, energy efficiency, and architectural aesthetics.
Standards & Certifications
| Standard | Scope |
|---|---|
| EN 13501-1 | Fire classification — Euroclass A1 (non-combustible) |
| EN 13501-2 | Fire resistance — up to EI 240 |
| EN 14509 | Self-supporting double-skin metal-faced insulating panels |
| ASTM C518 | Steady-state thermal transmission properties |
| ASTM E90 | Laboratory measurement of airborne sound transmission loss |
| GB/T 23932-2009 | Chinese national standard for metal-faced sandwich panels |
| ISO 9001 | Quality management system |
| CE marking | Available for European market compliance |
Products are manufactured under the ISO 9001 quality management system and CE certification is available to meet European project requirements. Fire test reports are available upon project approval.

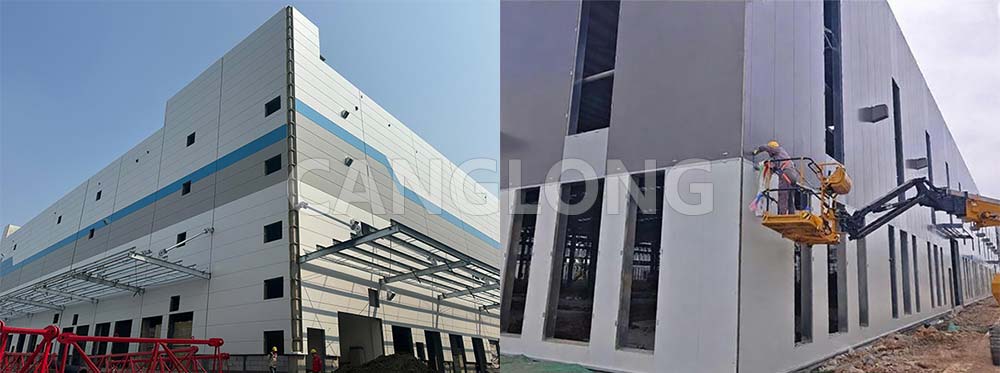

Installation Instructions
The polyurethane edge sealing rock wool composite board is installed using a tongue-and-groove joint and concealed fixing system. Key installation points are as follows:
- Structural Frame: Install and align vertical purlins or wall beams. Before installing the first row of polyurethane edge sealing rock wool sandwich panels, install waterproof flashing at the bottom.
- Fixing: Use self-tapping screws with waterproof washers to fix the panels to the corrugations or purlin positions. Horizontal spacing ≤300 mm, vertical spacing ≤600 mm. Ensure the washers are not deformed or damaged when tightening the screws.
- Installation Sequence: Install from bottom to top and from left to right. Gently press each panel into the base and adjust for flatness with a ruler, ensuring a tight joint with adjacent panels.
- Weather Conditions: Avoid installation in rain, snow, or strong winds. Remove the protective film promptly after installation.
Packaging and Delivery
The polyurethane edge sealing rock wool composite board is packaged in export standard packaging suitable for sea transport, with a protective film covering the decorative surface. Customized packaging is available upon request. The standard delivery time is 20–30 days after order confirmation, depending on order quantity and customization requirements.
Contact & Inquiry
For technical data sheets, fire test reports, samples, or project quotations, please contact the Canglong International sales team. We offer OEM/ODM services, customizing panel sizes, colors, surface treatments, and edge banding to meet local building codes and project requirements.

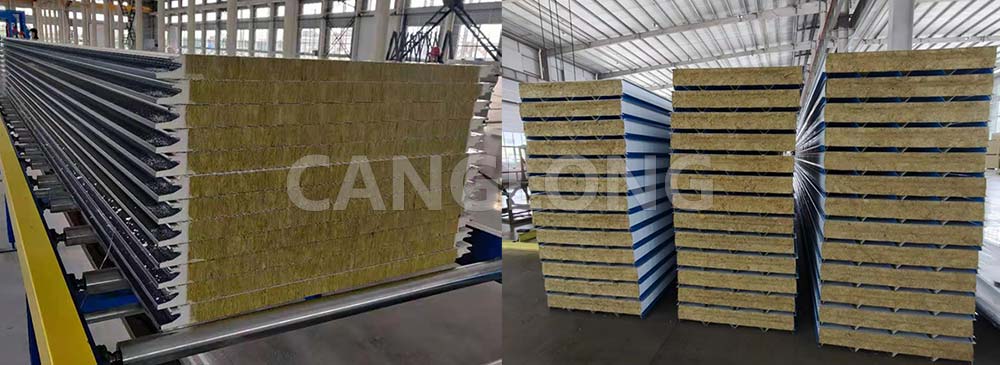

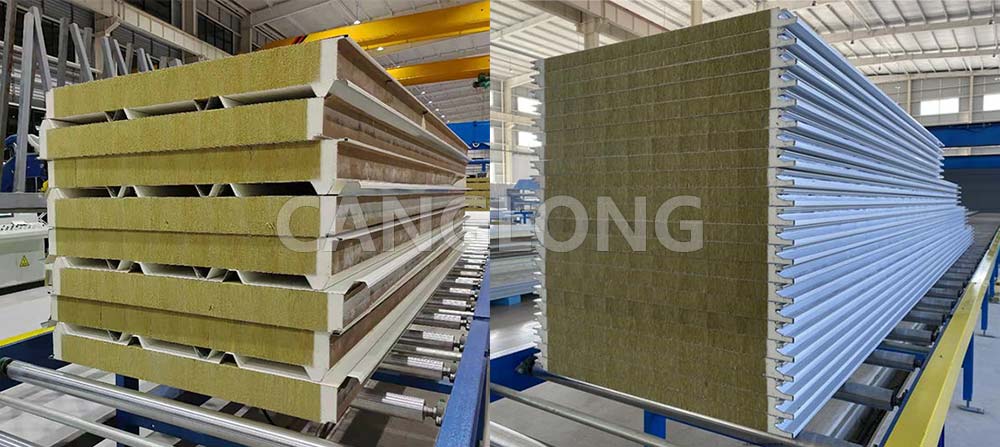

Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
