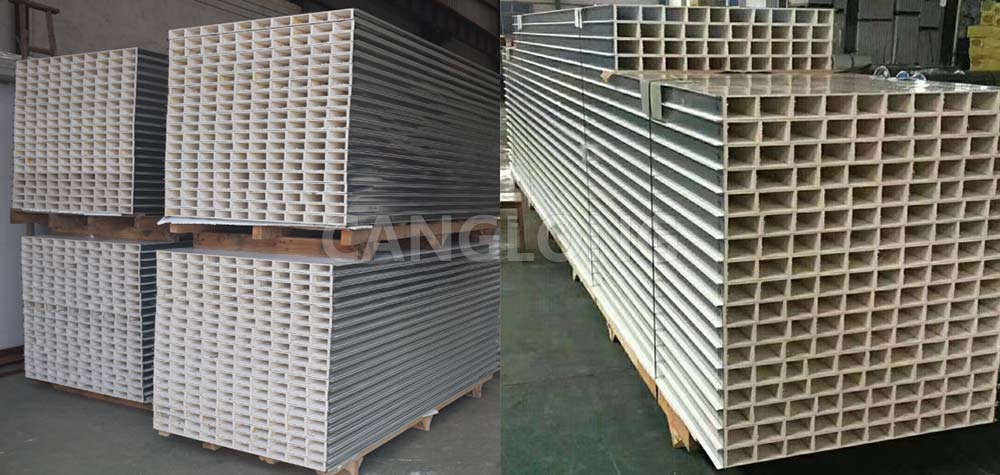

Hollow Glass Magnesium Sandwich Panel
- Effective Width: 950/980/1150mm
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Coating: PE/HDP/PVDF/SMF
- Plating: Hot-galvanize/Aluminium/Stainless
- Color of Steel Plate: White/Offwhite/Blue or Customized
- Core Material: Magnesium Oxide
- Core Thickness: 50/75/100/150mm
- Fire Rating: Class A1
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥20 years
- Product Origin: Henan, China
Product Details
Hollow glass magnesium sandwich panel also known as hollow magnesium oxide cleanroom panels, are a structural upgrade from traditional solid magnesium oxide panels. They are made from inorganic magnesium oxide (MgO), magnesium chloride, and plant fibers, molded into hollow profiles using a special mold, and then composited with color-coated steel sheets. This unique hollow design allows them to retain Class A fire resistance, moisture resistance, and corrosion resistance while significantly reducing weight and greatly improving sound insulation, heat insulation, and cable concealment. It is the preferred solution for high-end cleanroom projects and fireproof partitions worldwide.
Structural Form
- Core Structure: The panel cross-section has a continuous rectangular or elliptical hollow structure (similar to corrugated reinforcing ribs). This design, known in materials mechanics as the I-beam principle, maximizes bending strength while reducing weight.
- Composite Process: High-strength, environmentally friendly polyurethane adhesive is used to continuously composite the upper and lower layers of aluminized zinc-coated steel sheets with the hollow magnesium oxide core material under high temperature and pressure on a continuous production line.
- Connection Method: Standard tongue and groove joint. Conduit holes are typically pre-drilled at the interface, and combined with an embedded aluminum profile keel system, it achieves an aesthetically pleasing, screwless appearance with excellent airtightness.
- Surface Treatment: Surface materials can be anti-static color-coated steel sheets, stainless steel sheets, or anti-fingerprint coated sheets to meet different cleanliness levels.
Performance Parameters
Parameter Item | Typical Value / Description | Test Standard |
|---|---|---|
Standard Thickness | 50mm, 75mm, 100mm, 150mm | – |
Effective Width | 1150mm, 1180mm (Std. for Cleanrooms) | – |
Core Density | 800 – 1000 kg/m³ (Hollow Structure) | GB/T 25975 |
Thermal Conductivity | ≤ 0.085 W/(m·K) (Insulated Air Cavity) | GB/T 10294 |
Fire Resistance Rating | 1 – 4 Hours (Varies by thickness) | GB/T 9978 / ASTM E119 |
Reaction to Fire | Class A1 (Non-combustible) | GB 8624 / EN 13501-1 |
Sound Transmission Class (STC) | 38 – 48 dB (Acoustic Absorption) | GB/T 19889 |
Bending Capacity | ≥ 1.5 kN/m² (Optimized I-Beam Mechanics) | GB/T 5237 |
Surface Static Dissipation | 10⁶ – 10⁹ Ω (Optional Anti-static Face) | SJ/T 11159 |
Features of Hollow Glass Magnesium Sandwich Panel
- A1 Grade True Fire Resistance: Pure inorganic core material, non-combustible, smokeless, and non-toxic when exposed to fire, with a melting point exceeding 2800°C, making it a core material for firewalls and escape routes.
- Breathable Humidity Regulation: Magnesium oxide material has a unique microporous structure that can moderately regulate indoor humidity (moisture absorption and desorption) according to changes in ambient temperature and humidity, preventing condensation and creating a comfortable indoor microenvironment.
- Convenient Hollow-Cavity Wiring: The internal cavity allows for direct installation of electrical wires, cables, network cables, and monitoring conduits without the need for additional trenching or cable trays, significantly reducing electromechanical installation costs and maintaining wall integrity.
- Superior Weather Resistance: Resistant to acids and alkalis, insects, and aging. Its service life far exceeds that of ordinary color-coated steel sheets in corrosive environments such as coastal areas with high salt spray or chemical industrial parks.
- High Flatness and Rigidity: The I-beam design of the hollow structure maintains extremely high rigidity even with a relatively thin thickness, resulting in a flat wall surface without any unevenness.
Advantages of Hollow Glass Magnesium Sandwich Panel
- Lower Overall Cost: Compared to solid magnesium oxide panels, the hollow structure saves approximately 30% of raw materials, reduces transportation and installation difficulties, and eliminates the need for pre-embedded conduits within the wall, making it more cost-competitive overall.
- Highly Efficient Construction: Lightweight and high-strength (approximately 70% the weight of solid boards), combined with dry-layout tongue-and-groove connections, it can be moved and installed by a single person, making construction 5-10 times faster than bricklaying.
- Compliance Guarantee: Fully meets international cleanroom standards such as FDA, GMP, and ISO14644, as well as the most stringent fire safety regulations in various countries (such as Middle Eastern Civil Defense, NFPA).
- Green and Environmentally Friendly: Production produces no industrial waste, no formaldehyde, benzene, or other harmful substances are released during use; it is recyclable and meets LEED green building certification requirements.
Application Scenarios
High-Level Cleanrooms: Biopharmaceutical GMP workshops, hospital operating rooms (ORS), ICU wards, semiconductor chip manufacturing cleanrooms, and aseptic food packaging rooms.
Public Fireproof Partitions: Hospital corridors, school classrooms, shopping mall fire compartments, subway tunnel walls, and airport partitions.
Electronic Communication Equipment Rooms: Data Centers (IDC), server rooms, communication base stations (utilizing their electromagnetic shielding and cabling advantages).
Special Industrial Plants: Lithium battery production workshops, chemical explosion-proof areas, food processing plants (high requirements for mold and bacteria resistance).
Modular Buildings: High-end prefabricated container houses, medical mobile units, mobile nucleic acid testing laboratories.
Canglong Group Professional Services
Canglong Group hollow glass magnesium sandwich panel not only strictly adhere to Chinese GB standards but also provide testing reports conforming to ASTM (USA), BS (UK), and EN (EU) standards, tailored to project requirements. We possess extensive experience in overseas cleanroom engineering and can provide one-stop solutions from 3D detailed design, factory prefabrication, global logistics and distribution to cleanroom installation guidance, helping your projects to be implemented efficiently and compliantly worldwide.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
