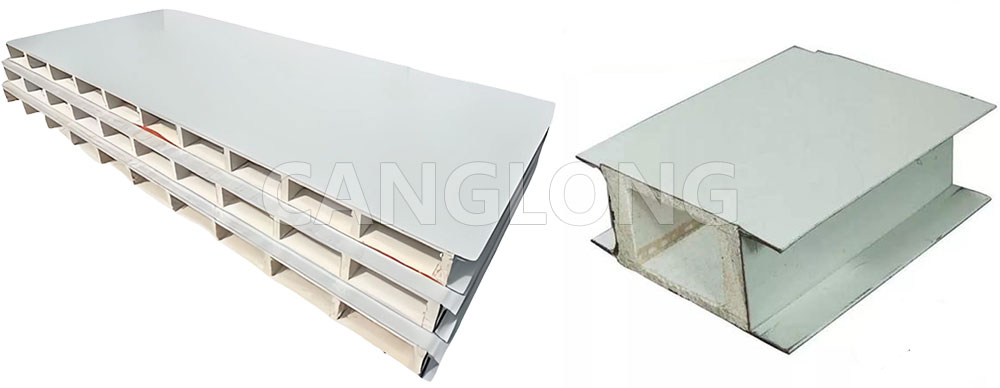

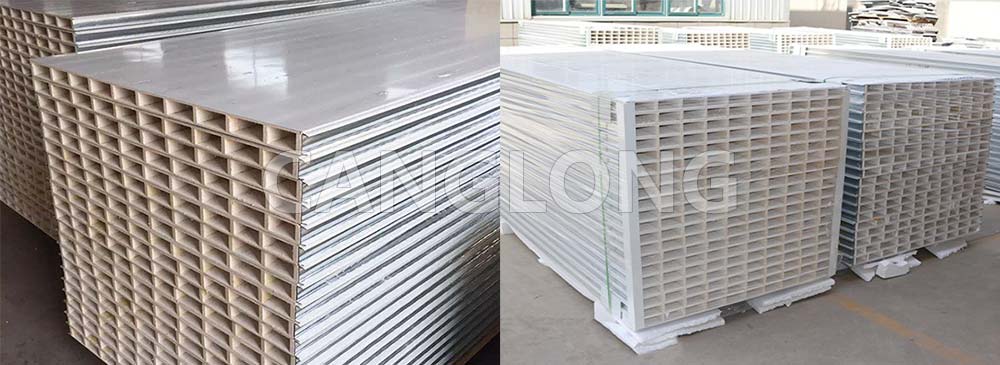

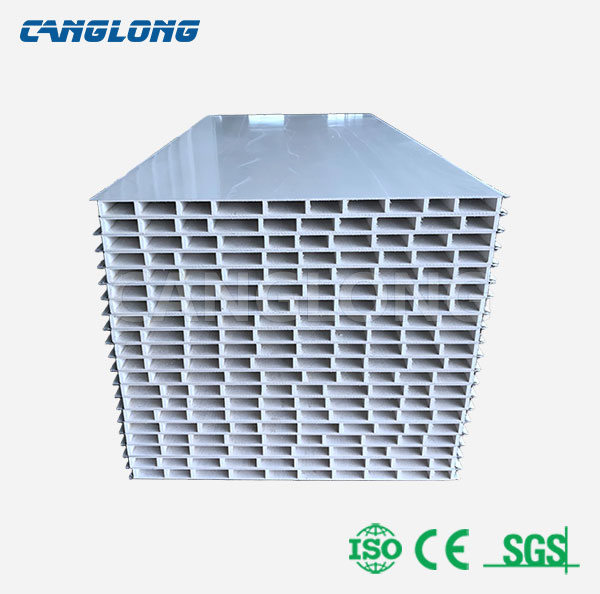

Cleanroom Hollow Magnesium Oxide Board
- Effective Width: 950/980/1150/1180mm
- Metal Sheet Thickness: 0.3mm to 0.8mm
- Coating: PE/HDP/PVDF/SMF
- Plating: Hot-galvanize/Aluminium/Stainless
- Color of Steel Plate: White/Offwhite/Blue or Customized
- Core Material: Magnesium Oxide
- Core Thickness: 50/75/100/150mm
- Fire Rating: Class A1
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
Cleanroom hollow magnesium oxide board is a new type of cleanroom-grade steel panel product specifically developed for high-cleanliness environments. The product uses high-quality color-coated steel sheets, galvanized steel sheets, anti-static sheets, or stainless steel sheets as the face panels on both sides, with two layers of 5mm fire-resistant MgO sandwich panels and a fire-resistant MgO inner spacer as the core material. It is composite-formed using a multi-functional continuous production line for steel sandwich panels. The MgO core material is mainly composed of inorganic materials such as high-purity active magnesium oxide (MgO), reinforced with a medium-alkaline fiberglass mesh and filled with lightweight materials, making it a green and environmentally friendly new type of non-combustible decorative material.
Depending on the production process, hollow MgO sandwich panels are divided into two types: machine-made and handmade. Handmade panels use a cold-drawn profile frame on all four sides, with the MgO mesh spacer glued internally, resulting in precise dimensions and good flatness. Machine-made panels are formed in one continuous automated production line.
Product Specifications
| Parameter | Machine-Made Panel | Handcrafted Panel |
|---|---|---|
| Thickness | 50mm, 75mm, 100mm, 150mm | 30–200mm (customizable) |
| Effective Width | 950mm, 1150mm | 980mm, 1180mm |
| Length | Customizable | ≤6000mm (customizable) |
| Facing Material | Color-coated steel, galvanized steel, anti-static steel, stainless steel, PVDF-coated steel, etc. | Color-coated steel, stainless steel, etc. |
| Fire Resistance Rating | Class A1 | Class A1 |
| Fire Resistance Duration | ≥1.5 hours | — |
| Thermal Conductivity | ≤0.044 W/(m·K) | — |
| Panel Type | Tongue-and-groove, center‑baffle box type, three‑female‑one‑male ceiling panel, etc. | Tongue‑and‑groove |
Optional panel materials include: PE polyester, PVDF (fluorocarbon), aluminized zinc, antistatic board, conductive board, stainless steel board, antibacterial board, PET board, etc. Connection methods include tongue and groove splicing or centrally located box panels.
Performance Advantages
A1 Fire Resistance, Highest Safety Level
The core material of the cleanroom hollow magnesium oxide board is an A1-grade non-combustible material (some indicators reach A2 grade), belonging to a high-grade fire-resistant building composite board. It will not melt during combustion, nor will it produce high-temperature decomposition drips. Testing shows that the product’s fire resistance limit can reach over 1.5 hours, effectively blocking the spread of flames and providing a solid guarantee for life and property safety.
Excellent Moisture and Water Resistance
The magnesium oxide sandwich panel for cleanroom uses inorganic materials as its main raw material, exhibiting excellent moisture resistance and allowing normal use in humid environments. The board has extremely low expansion and contraction rates, does not crack, deform, freeze, or rot, and remains stable even in high-humidity clean environments.
Lightweight and High-Strength, Good Flatness
The product is lightweight and high-strength, with a tensile strength of up to 5600 kg/cm². Hand-made boards combined with cold-drawn profile frames result in high overall strength and good flatness; machine-made boards have a smooth and aesthetically pleasing surface with accurate geometric dimensions. The product boasts excellent seismic resistance and adapts to various building conditions.
Superior Sound and Thermal Insulation Performance
The panels offer superior sound insulation, heat insulation, and thermal insulation properties, with a thermal conductivity as low as 0.044 W/(m·K), effectively maintaining a constant temperature and humidity environment in cleanrooms and reducing operational energy consumption.
Environmentally Friendly and Safe, Free of Harmful Substances
The product releases no formaldehyde or other harmful substances during production and use, making it green and environmentally friendly. Simultaneously, the product offers dustproof, antistatic, and antibacterial effects, meeting the multiple functional requirements of cleanrooms.
Facilitates Cable Laying
The core material of the panels has a hollow structure, making it convenient for concealed wiring during electrical construction when used in workshop partitions, significantly improving construction efficiency.
Application Scenarios
Cleanroom hollow magnesium oxide board is primarily used in environments with high requirements for cleanliness, fire resistance, and antibacterial properties. They are commonly used as purification panels for ceilings, partitions, and other components. Specific applications include:
Pharmaceutical Industry: Biopharmaceutical cleanrooms, medical operating rooms, GMP workshops;
Electronics Industry: Electronics industrial cleanrooms, chip semiconductor cleanrooms;
New Energy Industry: New energy cleanrooms;
Food Industry: Food cleanrooms;
Medical Research: Hospital operating rooms, P4 laboratories, research laboratories;
Industrial Buildings: Steel structure factory cleanroom partitions and ceilings;
Others: Cold storage, warehouses, mobile homes, etc.
With its comprehensive advantages such as A1 fire resistance, lightweight and high strength, moisture resistance, sound insulation, and environmental safety, cleanroom hollow magnesium oxide board has become the ideal choice for high-level cleanroom enclosure systems in pharmaceuticals, electronics, food, and medical industries. Canglong Group offers a full range of services for hollow magnesium oxide (MgO) panels, including customized design, manufacturing, international logistics, and installation guidance. It also provides a complete set of auxiliary materials such as cleanroom doors and windows, pass-through windows, and ventilation systems, supporting one-stop delivery for domestic and international projects. With over 20 years of experience in steel structure engineering, Canglong’s products are certified by international standards such as ISO, CE, and SGS, and are compatible with European, American, and local regulations, serving clients worldwide.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
