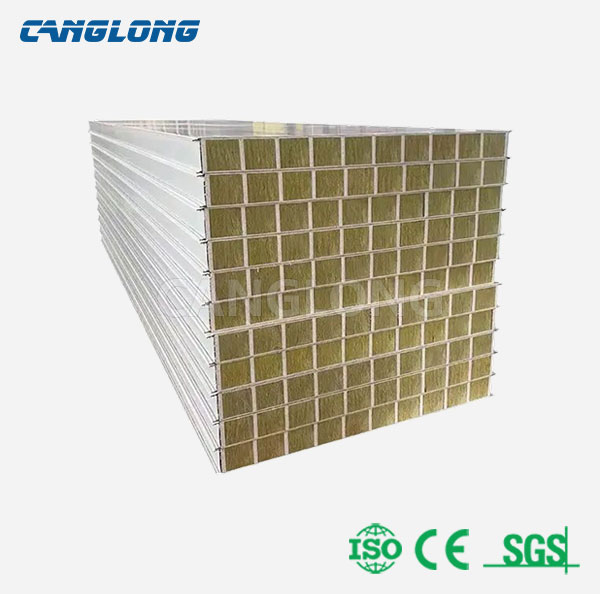

Magnesium Oxide Rock Wool Cleanroom Panel
- Effective Width: 950/980/1150/1180mm
- Metal Sheet Thickness: 0.3mm to 0.8mm
- Coating: PE/HDP/PVDF/SMF
- Plating: Hot-galvanize/Aluminium/Stainless
- Color of Steel Plate: White/Offwhite/Blue or Customized
- Core Material: Magnesium Oxide and Rock Wool
- Core Thickness: 50/75/100/150/200mm
- Fire Rating: Class A1
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
Magnesium oxide rock wool cleanroom panel is multi-layer composite enclosure materials specifically developed for high-level clean environments. The product uses high-quality rock wool as the insulation core, with magnesium oxide reinforcing boards laminated to one or both sides of the rock wool. It is then finished with color-coated steel sheets, stainless steel sheets, or galvanized steel sheets for both the interior and exterior surfaces, and is manufactured through a high-temperature, high-pressure, and curing process on an automated production line. The magnesium oxide board is made primarily from inorganic materials such as high-purity active magnesium oxide (MgO), reinforced with a medium-alkaline fiberglass mesh, and filled with lightweight materials.
Depending on the production process, magnesium oxide rock wool cleanroom panel is divided into machine-made and hand-made types. Hand-made panels are edge-sealed with galvanized steel strips and galvanized corner pieces, ensuring precise dimensions and good flatness. Machine-made panels are formed in one continuous automated production line. Depending on the number of composite layers, magnesium oxide (MgO) rock wool boards can be divided into single-sided MgO rock wool boards (four-layer structure: color-coated steel plate + MgO board + rock wool core material + color-coated steel plate) and double-sided MgO rock wool boards (five-layer structure: color-coated steel plate + MgO board + rock wool core material + MgO board + color-coated steel plate).
MgO rock wool cleanroom panel integrate Class A non-combustible fire resistance, long-term fire-resistant insulation, high-strength bending load-bearing capacity, and efficient sound insulation and noise reduction. They are widely used in partition enclosures and ceiling systems for clean areas such as electronic cleanrooms, pharmaceutical GMP workshops, food purification workshops, hospital operating rooms, and research laboratories.
Product Specifications
| Parameter | Machine‑Made MgO‑Rock Wool Panel | Handcrafted MgO‑Rock Wool Panel |
|---|---|---|
| Thickness | 50mm, 75mm, 100mm, 150mm, 200mm | 50mm, 75mm, 100mm, 150mm (custom 40–200mm) |
| Effective Width | 950mm, 1150mm | 980mm, 1180mm |
| Length | Customizable | Wall panels ≤6000mm / Ceiling panels ≤3000mm |
| Facing Material | Color‑coated steel, galvanized steel, stainless steel, etc. | Color‑coated steel, stainless steel, galvanized steel, color‑coated aluminum, etc. |
| Steel Sheet Thickness | 0.3–0.6mm | 0.4–0.8mm |
| MgO Board Thickness | Approx. 5mm (single or double‑sided) | Approx. 5mm (single or double‑sided) |
| Core Material Density | 100–140 kg/m³ | 100–120 kg/m³ |
| Fire Resistance Rating | Class A (non‑combustible) | Class A (non‑combustible) |
| Thermal Conductivity | ≤0.043 W/(m·K) | ≤0.043 W/(m·K) |
| Fire Endurance | 50mm ≥ 1h / 100mm ≥ 2h | Single MgO 50mm ≥ 1h / Double MgO 50mm ≥ 2h / Double MgO 100mm ≥ 4h |
| Water Repellency Rate | ≥98% | ≥98% |
| Joint Type | Mid‑bar, male‑female, tongue‑and‑groove | Mid‑bar, male‑female, tongue‑and‑groove, center‑aluminum connection |
| Diagonal Tolerance | — | ≤1mm |
Optional panel materials include: PE polyester, PVDF (fluorocarbon), chlorinated board, antistatic board, conductive board, stainless steel board, antibacterial board, PET board, HDP (high-durability polyester), etc.
Product Performance Advantages
A1 Grade Non-combustible Fireproof, Highest Safety Level
Magnesium Oxide Rock Wool Cleanroom Panel use a composite core of rock wool and magnesium oxide, achieving an overall fire resistance rating of A-grade non-combustible. The rock wool core is made from natural basalt, melted and fiberized at temperatures above 1450℃. The magnesium oxide board forms a dense protective layer at high temperatures, effectively delaying heat transfer to the core. The product does not burn at 800℃ and remains flameless at 1200℃, producing no toxic fumes or dripping when exposed to fire.
Outstanding Fire Resistance Limits:
- Single Magnesium Oxide 50mm Thick Product: ≥1 hour
- Double Magnesium Oxide 50mm Thick Product: ≥2 hours
- Double Magnesium Oxide 100mm Thick Product: ≥4 hours
Excellent Moisture and Water Resistance
The dense and smooth metallic finish of the magnesium oxide rock wool cleanroom panel provides excellent moisture and water resistance. The hydrophobic rock wool core has a water repellency rate of ≥98%, preventing moisture, mold, and deformation in the high-humidity environment of cleanrooms. The product is water-resistant, moisture-proof, mildew-proof, and corrosion-resistant. No formaldehyde is released during production, and its weather resistance can reach over 35 years.
Lightweight and High-Strength with Excellent Flatness
The composite structure of magnesium oxide board and rock wool significantly improves the fire resistance, bending load-bearing capacity, and overall strength of the board. The handmade boards are edged with galvanized steel strips, ensuring high dimensional accuracy and tight splicing. The product’s bending load-bearing capacity can reach 1.3KN/m², and its compressive strength ≥50kPa, making it suitable for both enclosure and load-bearing structures. The flatness of the boards can be controlled within a precision range of ≤2 mm/2 m.
Stable Thermal Insulation Performance
The thermal conductivity of the rock wool core material is ≤0.043W/(m·K), providing excellent thermal insulation performance. The heat transfer coefficient of the boards is approximately 0.32W/m²·K, effectively maintaining a constant temperature and humidity environment in cleanrooms and reducing operational energy consumption.
Excellent Sound Insulation and Noise Reduction Performance
High-density rock wool core material possesses excellent sound absorption and noise reduction capabilities, effectively isolating external noise and providing a quiet acoustic environment for cleanrooms.
Green and Environmentally Friendly
The product uses inorganic materials as its main raw material, releasing no harmful substances during production and use, making it a green and environmentally friendly new building material.
Application Scenarios
With its comprehensive advantages such as A1-level fire resistance, moisture resistance, lightweight yet high strength, and thermal and sound insulation, magnesium oxide rock wool cleanroom panel is widely used in the following fields:
Pharmaceutical Industry: Pharmaceutical GMP workshops, biopharmaceutical cleanrooms, medical operating rooms.
Electronics Industry: Electronic industrial cleanrooms, chip semiconductor cleanrooms, LED production workshops.
Food Industry: Food purification workshops, aseptic processing workshops.
New Energy Industry: New energy cleanrooms.
Medical Research: Hospital operating rooms, research laboratories, P4 laboratories.
Industrial Buildings: Steel structure workshops, cleanroom partitions and ceilings.
Others: Various building scenarios with strict requirements for fire resistance and cleanliness.
Canglong Group One-Stop Service
Canglong Group provides a full-process service for customized design, manufacturing, international logistics, and installation guidance for magnesium oxide rock wool cleanroom panel. Products support standard specifications (thickness 50-200mm, width 950-1180mm) and non-standard customization. Panels can be made from various materials such as color-coated steel, stainless steel, galvanized steel, and aluminum-magnesium-manganese steel. A complete set of auxiliary materials is provided, including cleanroom doors and windows, pass-through windows, ventilation systems, and air showers, supporting one-stop delivery for domestic and international projects. With over 20 years of experience in steel structure engineering, Canglong can provide a full range of services, including drawing refinement, scheme design, on-site construction, and post-construction maintenance. Products are certified by international standards such as ISO, CE, and SGS, and are compatible with European, American, and local regulations of various countries, serving customers worldwide.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
