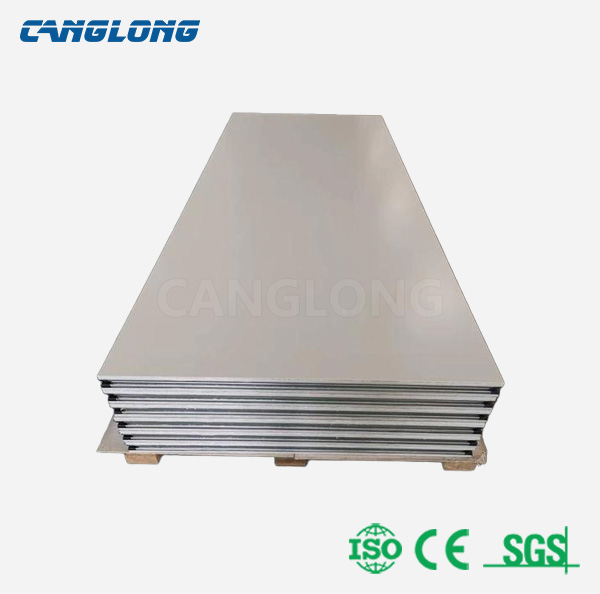

Clean Room Sandwich Panel
- Effective Width: 1150/1180mm
- Metal Sheet Thickness: 0.2mm to 0.8mm
- Coating and Plating: Hot-galvanize/Aluminium/Stainless
- Color of Steel Plate: White or Customized
- Core Material: EPS/PU/PIR/Rock Wool/MgO/MgO-RW
- Core Thickness: 50/75/100/150mm
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details
Clean room sandwich panel also known as purification panels, are enclosure structural materials specifically designed for special environments with strict requirements on air cleanliness, temperature, humidity, and pressure. They are manufactured through a continuous automated production line, combining high-quality color-coated steel or stainless steel sheets with a high-performance core material.
As the “skin” of a cleanroom, clean room sandwich panel not only provides physical support but also serves as a crucial barrier against dust particles, microorganisms, and chemical contaminants. Widely used in high-end manufacturing fields such as semiconductors, biomedicine, food and beverage, and precision instruments, it is the first line of defense for ensuring process yield and product quality.
Clean Room Sandwich Panel Structure
Overall Structure: Utilizing a “sandwich” composite structure, it consists of two layers of metal panels and a high-performance core material in between, bonded instantaneously under high temperature and pressure using high-strength polyurethane (PU) or epoxy adhesive.
Connection Method: Primarily employing concealed tongue and groove joints. Pre-installed EPDM or silicone sealing strips at the joints, combined with aluminum profiles at the inside and outside corners and rounded corners (R-corners), ensure seamless connection, eliminate dust accumulation dead spots, and guarantee airtightness.
Surface Treatment: The panel surface can be treated with antistatic coating, antibacterial coating, or anti-corrosion coating to meet the specific requirements of different cleanliness levels.

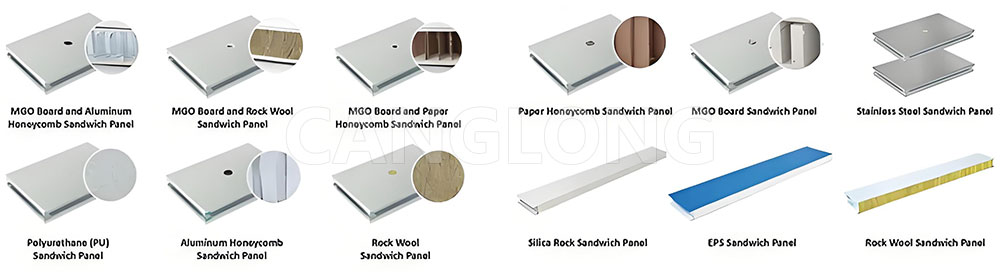

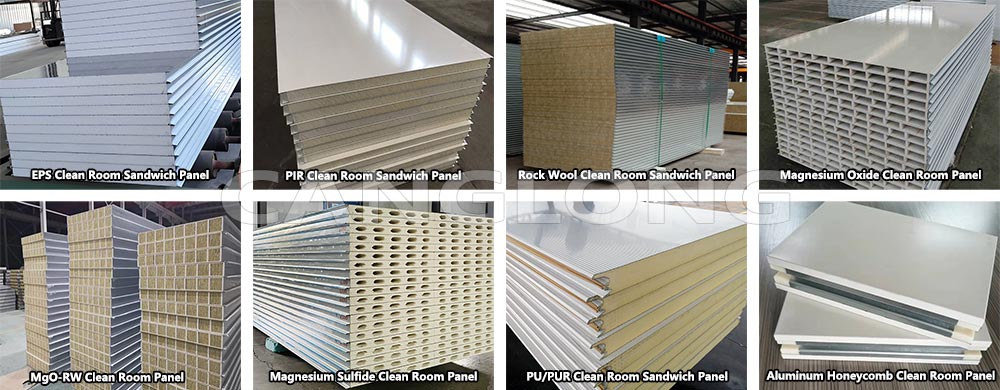

Material Classification
The core difference between cleanroom sandwich panels lies in the combination of the panel and core materials; different combinations determine the applicable environment and cleanliness level.
Classification Dimension | Material Type | Characteristics & Applicability |
|---|---|---|
By Facing Material | Pre-coated Steel (PCM/PPGI) | Most cost-effective, wide color range, good corrosion resistance. Suitable for electronics, food, and general pharmaceutical plants. |
Stainless Steel (304/316) | Excellent acid/alkali resistance, corrosion resistance, and oxidation resistance; easy to clean. Suitable for biopharma, operating rooms, and high-risk food processing zones. | |
Aluminum Plate/Aluminum Alloy | Lightweight, corrosion-resistant, non-sparking. Suitable for explosive atmospheres, aerospace, and high-humidity environments. | |
By Core Material | MgO Board (Magnesium Oxide) | Inorganic material, Class A1 fire rating, high strength. Often laminated with metal facings for high-fire-demand clean areas. |
Rock Wool (RW) | Class A Fire Rated, excellent sound insulation, but requires moisture protection. Suitable for fire walls, fire ceilings, and areas requiring thermal insulation. | |
MgO-Rock Wool Composite | Dual Fire Protection. Solves the issue of pure rock wool absorbing moisture and sagging. Higher strength, preferred for high-grade cleanrooms. | |
Polyurethane (PU/PUR) | Best thermal insulation performance, high strength. Commonly used in cold storage or cleanrooms with strict temperature/humidity control. | |
Polyisocyanurate (PIR) | Better fire performance than PU, good insulation. A high-performance option between PU and Rock Wool. | |
Magnesium Sulfate / Hollow MgO | Class A1 Fire Rated, lightweight, hollow structure facilitates hidden cable routing. Suitable for high-grade electronics factories and hospital operating rooms. | |
Paper Honeycomb / Aluminum Honeycomb | Extremely lightweight, high flatness, fire rating up to B1 or A1 (Aluminum). Suitable for cleanroom ceilings with lower air convection demands. |
Product Parameters Table
Parameter Item | Typical Value / Description | Notes |
|---|---|---|
Standard Thickness | 50mm, 75mm, 100mm, 150mm | Determines thermal & acoustic performance. |
Effective Width | 1150mm, 1180mm (Cleanroom Modular Std.) | Minimizes joints and maximizes installation efficiency. |
Facing Thickness | 0.426mm – 0.8mm | Common gauges: 0.476mm or 0.5mm. |
Core Density | RW: ≥120kg/m³; PU: ≥40kg/m³; MgO: ≥800kg/m³ | Directly impacts strength and insulation efficacy. |
Fire Resistance Rating | 0.5h – 4h | Depends on core type and panel thickness. |
Thermal Conductivity | RW: 0.040-0.045 W/(m·K) PU: 0.022-0.028 W/(m·K) | Measures thermal insulation performance. |
Surface Roughness | Ra ≤ 0.8μm – 1.6μm (S.Steel/Electrolytic) | Affects ease of cleaning and particle adhesion. |
Anti-static Performance | 10⁶ – 10⁹ Ω (Surface Resistance) | Prevents dust attraction and electrostatic discharge (ESD). |
Airtightness | ≤ 1.0 m³/(h·㎡) @ 50Pa | Critical for maintaining positive pressure gradients. |
Cleanliness Class Support | ISO Class 5 (100) – ISO Class 8 (100k) | Complies with ISO 14644-1 standards. |
Features of Clean room Sandwich Panel
Ultra-Clean Surface: The clean room sandwich panel features a flat, smooth, and seamless splicing design, combined with rounded corners (R-corners), completely eliminating bacterial growth sites and dust accumulation dead spots. It can withstand repeated wiping with strong disinfectants such as alcohol and hydrogen peroxide.
Superior Airtightness: The double guarantee of tongue and groove interlocking and sealing strips ensures a stable positive pressure gradient in the room, effectively preventing the infiltration of external contaminated air and maintaining a unidirectional or turbulent internal flow. Modularity and Flexibility: High degree of prefabrication in the factory, dry assembly on-site, rapid construction like building blocks. Walls can be easily opened for installation of observation windows, pass-through windows, and various instruments, and facilitates later dismantling and expansion.
Integrated Functionality: Hollow-structure panels can house internal piping (electrical wires, gas pipes, process pipes), achieving concealed piping within the walls and maintaining a clean interior appearance. Special functions such as anti-static, antibacterial, and radiation protection can also be integrated.
Safety & Compliance: Utilizing Class A non-combustible materials, meeting FM, UL, and international fire safety standards. The material itself has low outgassing, preventing the release of volatile organic compounds (VOCs) that could pollute the process environment.

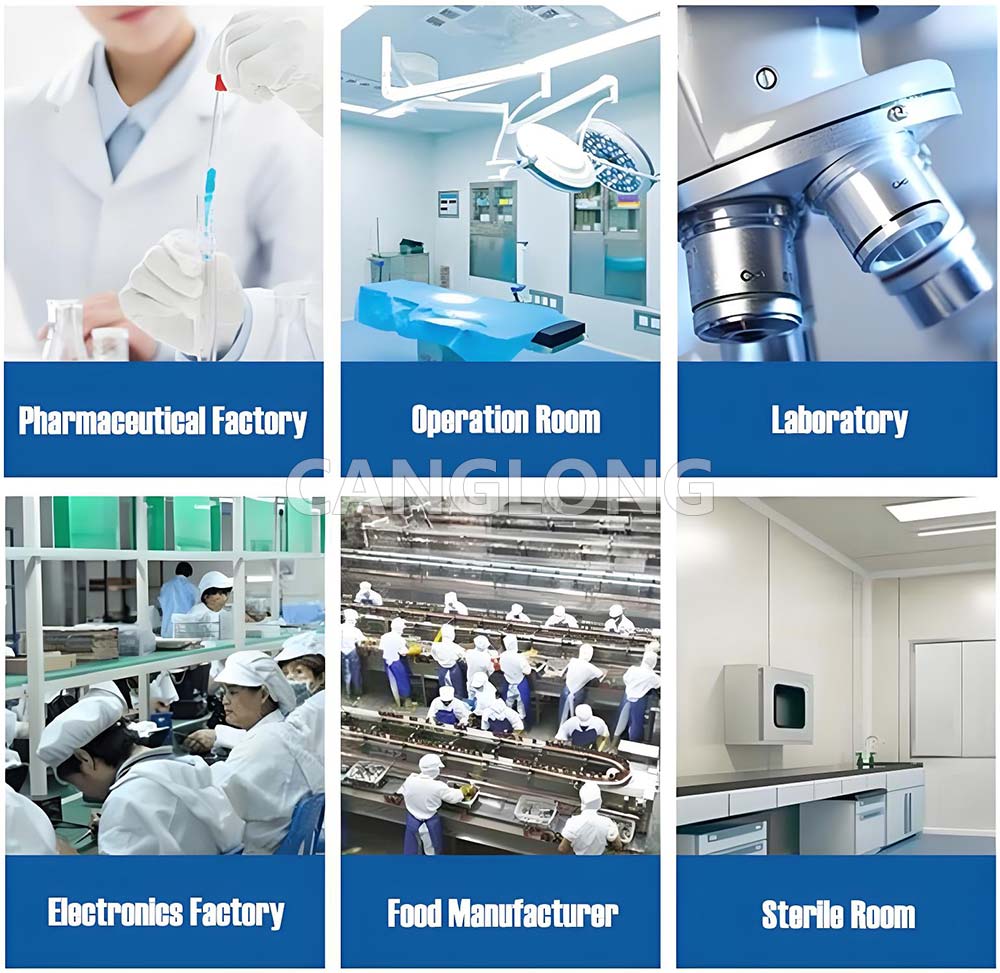

Application Scenarios
Life Sciences:
- Biopharmaceuticals: GMP A/B/C/D level cleanrooms, aseptic filling lines, vaccine production workshops.
- Medical Devices: Implant production, aseptic packaging areas.
- Hospitals: Class 100/Class 1000 operating rooms (OR), ICU, bone marrow transplant center, PCR laboratory.
Microelectronics & Semiconductors:
- Chip Manufacturing: Photolithography area, etching area, wafer fabrication (Fab), requiring ISO Class 1-5.
- Display Panels: LCD/OLED cleanroom.
- Photovoltaic Industry: Solar cell production workshop.
Food & Beverage:
- Dairy/Beer: Aseptic filling workshop, fermentation workshop.
- Baking/Delicious Food: Cooling area, inner packaging area (to prevent cross-contamination).
Research & Education (R&D):
- National Laboratories: P3/P4 biosafety laboratory, nanotechnology laboratory, precision balance room.
Specialty Industries:
- Aerospace: Precision assembly workshop.
- Lithium Batteries: Electrode coating, cell assembly (high requirements for explosion-proof and dehumidification).

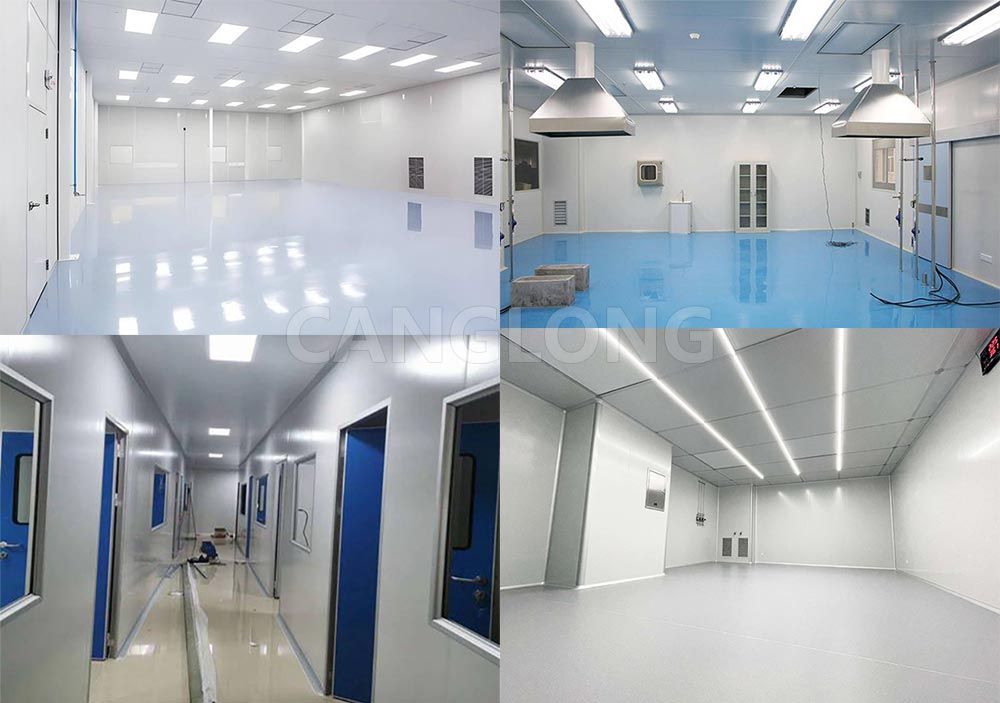

Canglong Group Clean Room Solutions
Canglong Group possesses deep knowledge of global cleanroom industry standards, providing a full-process service from design consultation, BIM refinement, factory prefabrication to on-site installation guidance. We not only offer various clean room sandwich panel compliant with ISO 14644, FDA, and GMP standards, but also customize enclosure systems with special functions such as antistatic, antibacterial, and wipeable properties according to your process requirements. Whether your project is located in Silicon Valley, Frankfurt, or Singapore, Canglong Group is your trusted cleanroom environment partner.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
