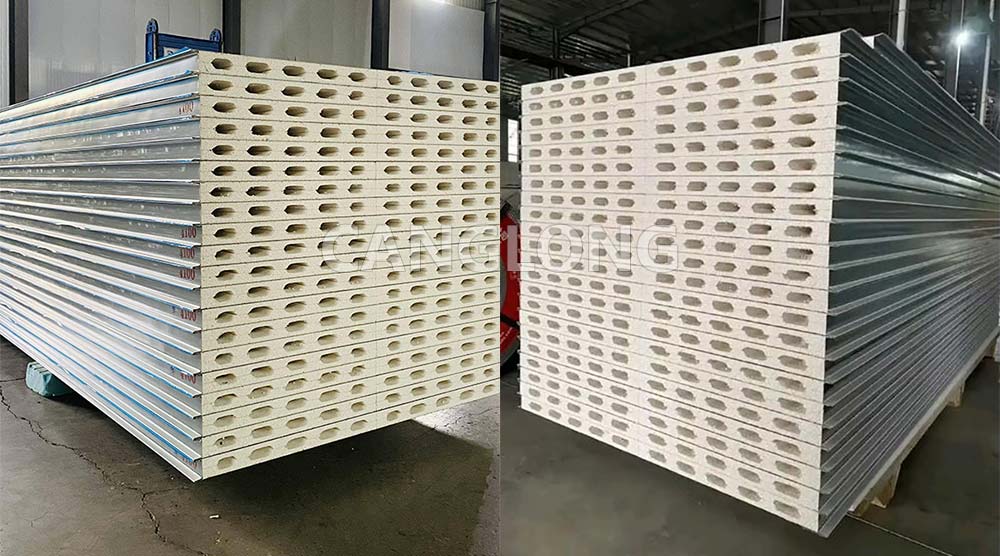

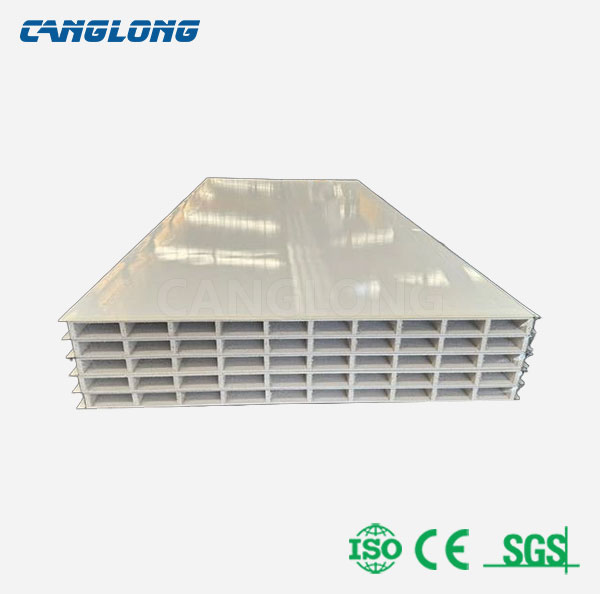

Magnesium Oxide Sandwich Panel

Product Details

Magnesium oxide sandwich panel is high-performance building envelope materials that integrate fire resistance, moisture resistance, and thermal insulation. They utilize a unique inorganic magnesium oxide material as their core, which is composite-formed with color-coated steel sheets through an automated production line. As an upgraded alternative to traditional EPS/XPS and rock wool sandwich panels, magnesium oxide sandwich panels, with their superior inorganic flame-retardant properties and excellent weather resistance, are becoming the preferred solution for industrial plants, clean rooms, and public buildings.

Material Composition

• Facing Material: Typically uses aluminized zinc or galvanized color-coated profiled steel sheets (PPGI/PPGL), with thicknesses ranging from 0.4mm to 0.8mm. Coatings can be customized with PVDF, SMP, or PE, providing excellent UV resistance and corrosion resistance.
• Core Material: High-density magnesium oxide board (MgO Board). The main components are magnesium oxide (MgO), magnesium chloride (MgCl₂), and modifiers, manufactured through a high-temperature and high-pressure curing process. The core material is free of asbestos, formaldehyde, and benzene compounds, making it a typical green and environmentally friendly material.
• Adhesive: High-strength polyurethane (PU) two-component adhesive or epoxy resin adhesive to ensure the panel and core material do not delaminate under extreme temperatures.

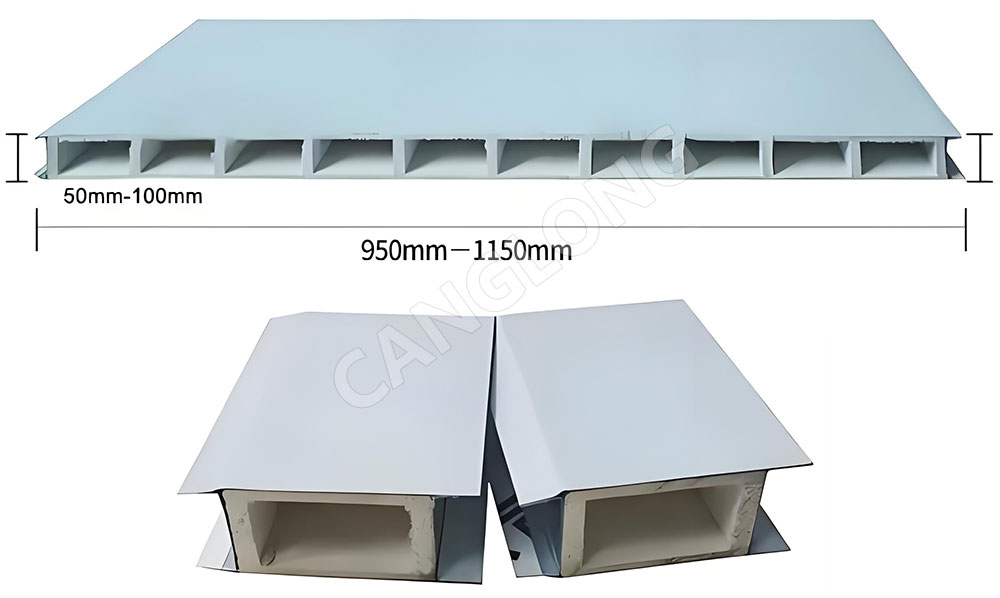

Structural Form

• Connection Method: Concealed tongue and groove joints or exposed nail overlaps are used, along with EPDM waterproof strips, to effectively block thermal bridges and improve airtightness and watertightness.
• Cross-sectional Shape: Usually a flat panel, but can be reinforced with ribs to increase rigidity according to customer requirements.
• Construction Layers: Upper profiled steel sheet + adhesive layer + magnesium oxide core material + adhesive layer + lower profiled steel sheet.

Performance Parameters

Features of Magnesium Oxide Sandwich Panels

True Fireproofing: Unlike organic foam boards, magnesium oxide core material is an inorganic mineral, non-combustible, smokeless, and non-toxic when exposed to fire, with a melting point as high as 2800°C, effectively preventing the spread of fire and buying valuable time for evacuation and property protection.

Superior Moisture Resistance: Solves the problem of ordinary rock wool boards absorbing moisture and causing deformation. Magnesium oxide sandwich panel maintain structural stability and strength in humid environments (such as coastal areas and underground).

Eco-Friendly: Production generates no industrial waste, and no harmful gases are released during use. They are recyclable after disposal, meeting LEED and other international green building certification requirements.

High Strength: The high-density core material gives the panels excellent impact resistance and load-bearing capacity, making them suitable for use as structural support walls.

Advantages of Magnesium Oxide Sandwich Panel

• Low Life Cycle Cost: Although the initial investment is slightly higher than ordinary color steel panels, their extremely long service life (up to 25 years or more) and extremely low maintenance costs significantly reduce the total cost of ownership (TCO).
• Double Construction Efficiency: Lightweight and high-strength, modular installation, combined with a prefabricated steel structure frame, can significantly shorten the construction period and reduce labor costs.
• Strong Compliance: Easily meets stringent global building fire safety regulations (such as Civil Defense requirements in the Middle East and fire protection codes for high-rise buildings in Europe and America).
• Wide Environmental Adaptability: Maintains stable performance in both high-salt-fog environments of tropical islands and freeze-thaw cycles of cold regions.

Application Scenarios

Industrial and Logistics: High-standard electronics factories, food and beverage factories, pharmaceutical warehouses, and logistics sorting centers (areas with high fire resistance requirements).

Public and Commercial: Schools, hospitals, airport terminals, stadiums, and atrium partitions and ceilings in shopping malls.

Cleanroom Engineering: Biological laboratories, pharmaceutical workshops, hospital operating rooms, and semiconductor cleanrooms (due to their low dust generation and antibacterial properties).

Special Facilities: Tunnel wall panels, subway platforms, ship compartments, and enclosure systems for chemical plants.

Civil Buildings: Modular houses, container houses, and villa exterior wall and roof systems.

Canglong Group not only supplies high-quality magnesium oxide sandwich panels, but also provides one-stop solutions from detailed design, precision manufacturing, global booking and shipping to on-site installation guidance. Whether your project is located in a tropical rainforest or a desert, our products undergo rigorous factory testing to ensure they arrive on site in perfect condition.

Sandwich Panel Production Workshop

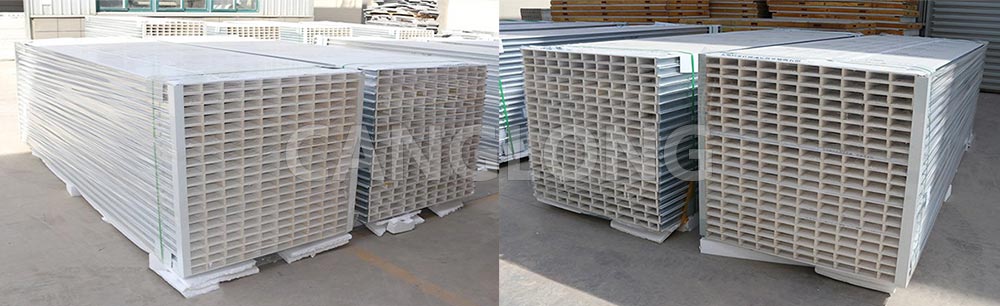

Sandwich Panel Packing & Shipping

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.

Our Certificates

Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.

Application of Sandwich Panels

Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
