How to choose a chinese insulated sandwich panel supplier?
The core selection logic for buyers when choosing a Chinese insulated sandwich panel supplier is: 1. Check the supply chain of major raw material manufacturers; 2. Verify the completeness of international certifications; 3. Compare the system inspection reports.
China is the world’s largest producer of insulated sandwich panels in the global construction supply chain. However, faced with hundreds or even thousands of factories of varying sizes, buyers can easily fall into traps such as falsely labeled steel plates, substandard core materials, and leaky joints.
Below is a guide to avoiding pitfalls when purchasing sandwich panels in China and a core inspection checklist.
I. Three Essential Selection Steps for Buyers
1.1. Check the Upstream Steel Mill Network
70% of the lifespan of a sandwich panel depends on the outer color-coated steel plate. Excellent suppliers would never compromise on raw materials.

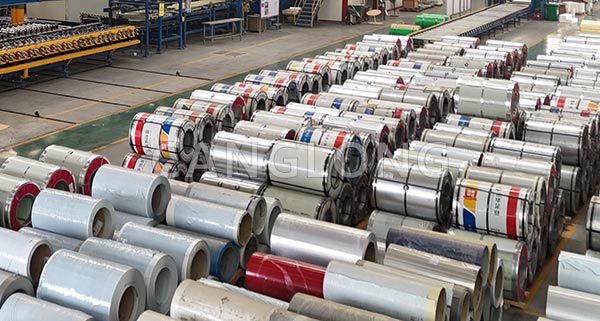

Key Indicator: Inquire which steel mill’s base material the factory uses. Top Chinese color-coated steel coil suppliers include Baosteel, BlueSteel, Guanzhou, and Hongyu.
Avoidance Guidelines: If the factory is vague about the source of the color-coated steel coils, or uses materials from unknown small factories, the coating thickness and zinc layer quality are likely unreliable, leading to widespread fading and rust within 2-3 years after construction.
1.2. Align with International Standards
Different countries have strict regulations on building materials. Without corresponding certifications, goods cannot clear customs or pass local inspections upon arrival.
- European and American Markets: CE certification (European standard EN 13501-1 fire resistance rating) or North American FM Approved, ASTM test reports are required.
- Southeast Asia/Middle East: Usually requires ISO 9001 quality management system certification and third-party testing reports conforming to local standards (such as SGS, TUV reports).
1.3. Check if the Production Line is Continuous or Continuous
- Fully Automated Continuous Production Line: The entire process, from uncoiling the steel coil, foaming/forming, curing to cutting, is completed in one go. The surface flatness is extremely high, and the core material is tightly bonded to the steel plate. High-specification projects must choose factories with continuous production lines.
- Semi-automatic discontinuous production lines: Relying on manual core material laying and press forming, they are prone to localized voids and uneven thickness, belonging to the low-end market configuration.
II. Essential On-site/Third-Party Inspection Checklist for Buyers
When you entrust a third-party agency (such as SGS) or personally inspect the goods at the Chinese factory, please be sure to check the following core indicators:
| Inspection Item | International Standard / Buyer’s Passing Line | Inspection Method |
| Steel Thickness | Nominal 0.5mm, tolerance should be controlled within $\pm 0.03mm$ | Use a digital micrometer to measure the bare steel sheet after peeling off the core material. |
| Coating Thickness (DFT) | Conventional PE $\ge 15\mu m$; PVDF $\ge 25\mu m$ | Use a coating thickness gauge. |
| Core Density | Rock Wool $\ge 100-120kg/m^3$; PU/PIR $\ge 38-42kg/m^3$ | Cut a standard cube and weigh it to calculate the density. Lower than this standard results in poor insulation and compression resistance. |
| Peeling Performance (Bonding) | When forced apart, the core material should remain adhered to the steel plate (cohesive failure) | Perform a manual peel test on-site to check glue adhesion, preventing future blistering or delamination. |
| Joint Profile Dimensions | Allowed tolerance $\le 1.0mm$ | Randomly select two panels for on-site interlocking assembly to check the airtightness and fit of the joint. |
III. Why Did The Buyer Ultimately Choose Canglong Group?
As a leading enterprise in China’s prefabricated building and insulation sandwich panel supplier, Canglong Group is able to sell sandwich panels in large quantities to high-standard regions such as the United States, Canada, Chile, Australia, Zambia, the Democratic Republic of Congo, and the Caribbean. The core reason is that we have solved three major pain points in cross-border procurement:
3.1. Top-quality raw materials and continuous production line technology

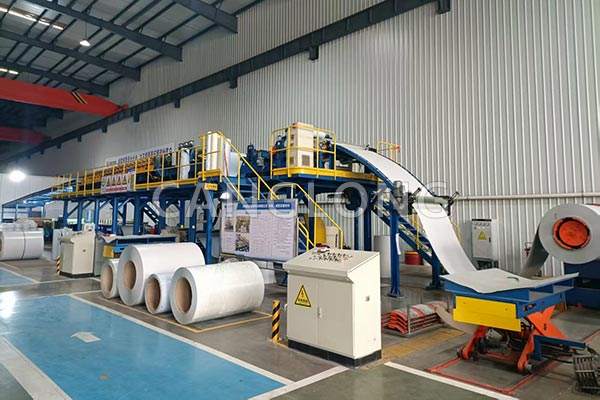

Canglong Group insists on deep cooperation with China’s top steel mills, and its products are equipped with high-zinc/aluminum-zinc-magnesium base steel plates as standard. The factory has introduced a fully automated, high-precision continuous foaming/composite production line, which not only boasts high production speed (capable of handling rush orders of tens of thousands of square meters) but also ensures that every board leaving the factory meets perfect industrial standards.
3.2. Technological innovation in fire and water resistance
Addressing customers’ biggest concerns about rock wool’s water absorption and cold bridging issues, Canglong Group primarily promotes polyurethane (PU) edge-sealed rock wool boards.
High-performance PU foam is perfectly injected into the tongue and groove joints on both sides of the rock wool board using a continuous production line.
Dual benefits: It retains the absolute Class A fire resistance of rock wool while utilizing the closed-cell characteristics of polyurethane to achieve 100% physical waterproofing and superior airtightness, perfectly passing fire protection and storm resistance tests in multiple countries.
polyurethane (PU) edge-sealed rock wool boards
3.3. Stringent international certification system
Canglong Group possesses a complete ISO 9001 system, and all its products comply with CE standards. It can also provide authoritative third-party quality inspection reports for different countries (such as ASTM and EN standards). Our engineers are well-versed in the load and meteorological standards of different regions, including North America, Latin America, and Africa, enabling them to directly refine designs to overseas standards.
3.4. Double-layer protective shipping standards
Sandwich panels are fragile items. Canglong understands the turbulence of transoceanic shipping, so we employ a double-layer packaging protection solution: a scratch-resistant high-adhesion film, a thickened industrial stretch film, and rigid corner protectors. This ensures that goods arrive at construction sites in Zambia or Canada, perfectly intact, just as they were at the factory.
insulated sandwich panels packaged and shipped
Conclusion
Choosing a Chinese insulated sandwich panel supplier means buying not only the price per square meter, but also decades of building safety. Canglong Group with its transparent one-stop supply chain, robust international testing reports, and hundreds of successful cases worldwide, ensures the stability of every investment for overseas buyers.
Do you currently have any industrial or logistics projects in the pipeline? We can send you a complete set of sandwich panel samples and certification reports free of charge, based on your local climate and customs regulations.
