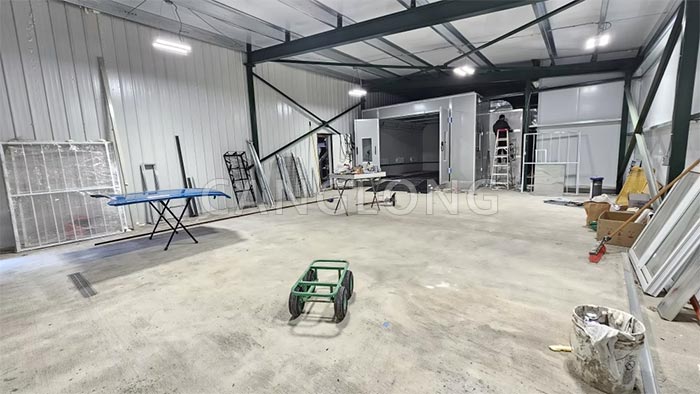

Recently, a compact small warehouse project in Canada, with a complete one-stop solution provided by Canglong Group, has been successfully completed. The project underwent specialized structural refinement and material upgrades tailored to the extremely cold and snowy climate of high-latitude North America, creating a sophisticated yet robust modern storage space for the client with superior energy efficiency and airtightness.

Ingenious Single-Slope Design and Sturdy Frame

The small warehouse achieves a perfect balance between spatial planning and structural stress:

Spatial Dimensions: The project’s precise dimensions are 17.526 meters long and 8.84 meters wide, with a total building area of ​​approximately 155 square meters.

Single-Slope Roof Structure: This design is ideal for the spatial planning of compact sites in North America. During Canada’s heavy winter snowfall, the single-slope roof guides snow and rainwater to slide naturally in one direction. Combined with a standard high-efficiency drainage system, this fundamentally reduces the long-term snow load on the roof, ensuring structural safety.

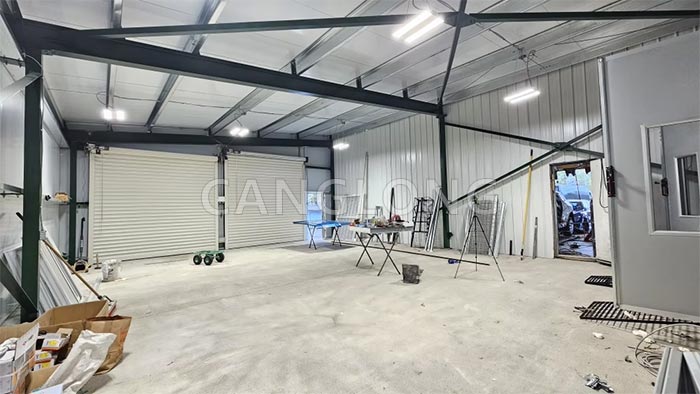

Robust Support: High-strength H-beams are uniformly used for the main beams and columns, while the secondary structure employs high-precision CNC prefabricated C-beam purlins, constructing a robust steel framework for the entire building to resist earthquakes and snowstorms.

Comprehensive Polyurethane (PU) Energy-Saving Enclosure

Given Canada’s long and harsh winters, reducing subsequent heating energy consumption is a core requirement for the client:

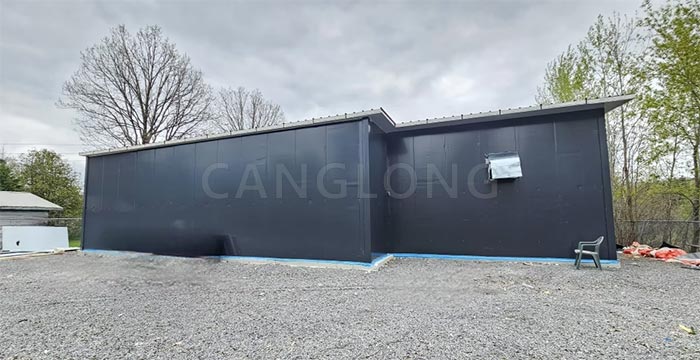

• PU Sandwich Panel Full Enclosure: The small warehouse building’s four walls and roof panels uniformly utilize high-quality polyurethane (PU) sandwich panels with extremely low thermal conductivity.
• Seamless Insulation, Preventing Cold Bridges: Polyurethane’s superior closed-cell ratio and thermal insulation performance act like a continuous “down jacket” for the warehouse, completely eliminating indoor condensation and effectively maintaining stable indoor temperatures, significantly reducing winter heating electricity costs.

Full-Supply, Full-Bolt Assembly

Canglong Group’s strong overseas one-stop supply capability for complete sets of equipment makes cross-border infrastructure construction simple and efficient:

• Industrial-grade components: Along with the main steel structure, a high-strength industrial roller shutter system, highly flexible fasteners, and a complete set of leak-proof flashing and bending components are also packaged and shipped simultaneously.
• 100% Weld-Free Assembly: All components are precision-machined and punched in Canglong’s modern factory in China, and then assembled entirely with bolts after arriving at the Canadian site by sea. This “modular” construction method significantly reduces the high local labor costs for installation and greatly shortens the construction period.

Regardless of project size, Canglong Group consistently safeguards the asset appreciation of its global clients with stringent international quality standards and worry-free one-stop service.
