Polyurethane Sealing Rockwool Sandwich Panels For Roof
- Effective Width: 1000mm/1m
- Profile Types: 3/4 ribs
- Core Material Density: 80-120kg/m³
- Metal Sheet Thickness: 0.4mm to 0.8mm
- Color of Steel Plate: White/Offwhite/Blue or Customized
- Core Thickness: 50/75/100/150/200mm
- Coating: PE/HDP/PVDF/SMF
- Plating: Hot-galvanize/Aluminium/Stainless
- Sound Insulation: ≥30db
- Flammability Rating: A
- Delivery Time: 7-15 days
- Shipping Port: Qingdao Port
- Payment: T/T, L/C, PayPal
- Service Life: ≥15 years
- Product Origin: Henan, China
Product Details

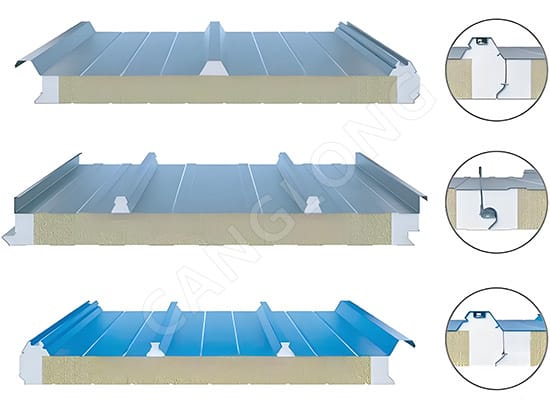

Polyurethane sealing rockwool sandwich panels for roof are a preferred material for modern building envelope systems, integrating high-efficiency thermal insulation, superior fire resistance, and durable sealing performance. This product employs a unique “sandwich” structure, using high-quality rock wool as the core material, with high-strength color-coated steel sheets laminated on both sides. Through an advanced continuous production line, the edges of the panels are integrally sealed with polyurethane material.
Core Characteristics and Advantages
Superior Thermal Insulation Performance: Rock wool core material has an extremely low thermal conductivity, effectively blocking heat transfer, significantly reducing building energy consumption, and meeting the stringent requirements of green building and energy-saving design.
Top-Tier Fire Safety Rating: Rock wool is an A1-class non-combustible material that does not produce molten drips or toxic fumes when exposed to fire. Combined with polyurethane sealing edges, it effectively prevents the spread of fire and smoke, providing a crucial fire barrier for the building.
Durable Waterproofing and Airtightness: The core innovation lies in the polyurethane sealing process at the four edges. It completely eliminates the potential for cold bridging, water seepage, and air leakage at the seams of traditional rock wool sandwich panels, forming a continuous and complete sealing system. Significantly improves the overall water tightness and air tightness of the roof, ensuring no leakage during long-term use.
Strong and durable, with a highly efficient structure: The upper and lower metal panels and dense rock wool core are bonded together with a high-strength adhesive to form an integrated load-bearing structure, possessing excellent compressive and bending strength and rigidity. Polyurethane sealing edges further enhance the integrity of the panels, resulting in a flat, aesthetically pleasing roof with strong load-bearing capacity after installation.
Easy installation, economical and efficient: Standard panel design allows for flexible and quick installation. Polyurethane sealing edges ensure a tighter and more reliable connection between panels, simplifying joint treatment, improving construction efficiency and project quality, effectively shortening the construction period, and reducing overall costs.
Polyurethane Sealing Rockwool Roof Sandwich Panel Parameters
| Panel Thickness | Heat Conductivity (W/m2.K) | Weight(kg) | Load capacity (P=KN/M2) | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50mm | 0.75 | 15.75 | L(m) | 3.78 | 3.13 | 3.31 | 2.98 | 2.41 |
| 75mm | 0.53 | 18.68 | L(m) | 4.83 | 4.21 | 4.21 | 3.76 | 3.01 |
| 100mm | 0.41 | 21.62 | L(m) | 5.77 | 5.02 | 5.02 | 4.47 | 3.55 |
| 150mm | 0.31 | 27.51 | L(m) | 7.53 | 6.54 | 6.54 | 5.82 | 4.61 |
Application areas of polyurethane sealing rockwool sandwich panels
Widely used in roofing systems for various buildings such as industrial plants, logistics warehouses, large public buildings, commercial facilities, and cleanrooms where high requirements for thermal insulation, fireproofing, and leak prevention are required.
Polyurethane sealing rockwool sandwich panels for roof with their reliable integrated performance of thermal insulation, fireproofing, and sealing, provide you with a safe, energy-saving, and durable high-quality building shell, making them a rational choice that balances performance and long-term value.
Sandwich Panel Production Workshop
Sandwich Panel Packing & Shipping
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged. And all the structure components, panels, bolts and sorts of accessories will be well packed with standard package and it is suitable for ocean transport.
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake.
Packing: Per customer's requirements or per product sizes, full protection packing.
Shipping: Per customer's requirements or per container sizes.
Unloading: We package it as a whole and can be easily pulled out at once with a forklift, which is very convenient.
Our Certificates
Our sandwich panel certificates include EU CE certification, BPS certification, and ICC certification.
Application of Sandwich Panels
Usage scenario: Insulated sandwich panels are used as exterior walls and interior partitions, installed vertically or horizontally on single span or multi span structures. Such as industrial buildings, steel frame structures, warehouses and logistics centers, commercial buildings and offices, fire-resistant buildings, agricultural and livestock buildings, sports halls, exhibition halls, factories, garages, hangars, barns, prefabricated houses, cold storage, clean room, etc.
We provide the following RAL color card colors for your reference. For other colors, please compare the Raul color card colors.
Note: The above color card has a slight deviation due to printing reasons, please refer to the actual products.
If you purchase metal sandwich panels from Canglong Group, we will also provide some accessory products, including self tapping nails, rivets, waterproof caps, polyurethane glass glue, mouth and corner accessories, outer ridge tiles, waterproof eaves, external and internal corners, eaves edging, plugs, door and window edging, purified aluminum profiles, etc.
High-quality Raw Materials
We strictly select high-quality suppliers. All color steel coils and core materials are from China top 500 companies and have undergone strict quality inspections to ensure the basic quality of the products.
-
Advanced Production Equipment
The factory is equipped with advanced production equipment, including automated production lines, cNc cutting machines and high-precision pressing equipment, to ensure that the production process of each color steel sandwich panel is accurate and stable.
-
Mature Supply Solutions
One-stop supply of all accessories for sandwich panel installation, standardized packaging process, to avoid friction or damage of sandwich panels on the road, easy for customers to unload, saving time and money for customers.
-
Q1: What are the main applications of polyurethane sandwich panels?
A: Polyurethane sandwich panels are commonly used for insulation and construction in various building types, including residential, commercial, industrial, and agricultural structures. They are suitable for walls, roofs, ceilings, and floors.
Q2: What are the advantages of polyurethane sandwich panels?
A: Polyurethane sandwich panels offer excellent thermal insulation properties, lightweight construction, high strength-to-weight ratio, versatility, weather resistance, fire resistance (with appropriate treatments), aesthetic appeal, and cost-effectiveness.
Q3: How do polyurethane sandwich panels contribute to energy efficiency?
A: Polyurethane sandwich panels provide effective thermal insulation, reducing heat transfer through walls and roofs. This helps maintain comfortable indoor temperatures and reduces the energy required for heating and cooling, thus contributing to energy efficiency and lower utility bills.
Q4: Are polyurethane sandwich panels environmentally friendly?
A: Polyurethane sandwich panels can be environmentally friendly when produced using sustainable manufacturing practices and materials. Additionally, their energy-saving properties contribute to overall environmental sustainability by reducing energy consumption and greenhouse gas emissions.
Q5: How durable are polyurethane sandwich panels?
A: Polyurethane sandwich panels are known for their durability and resistance to various environmental factors, including weather, moisture, and corrosion. Proper installation and maintenance can further enhance their longevity.
Q6: Are polyurethane sandwich panels easy to install?
A: Yes, polyurethane sandwich panels are relatively easy to install compared to traditional building materials. Their lightweight nature and standardized dimensions facilitate quick and efficient installation, resulting in reduced construction time and labor costs.
Q7: Can polyurethane sandwich panels be customized?
A: Yes, polyurethane sandwich panels can be customized to meet specific design requirements, including color, finish, thickness, and profile. Customization options allow architects and builders to achieve desired aesthetics and performance characteristics for their projects.
Q8: How do I maintain polyurethane sandwich panels?
A: Maintenance requirements for polyurethane sandwich panels are minimal. Regular cleaning with mild detergent and water, inspection for any damage or deterioration, and prompt repair of any issues are recommended to ensure optimal performance and longevity.
Product Features
The metal sandwich panels produced by Canglong are insulated, fire-resistant, environmentally friendly, earthquake resistant, and durable.
